| Brand Name : | AISON |
| Certification : | CE, ISO9001 |
| Model Number : | AISON-DF19 |
| Price : | Contact us |
| Delivery Time : | within 35-45 work days |
| Payment Terms : | TT |
| Supply Ability : | 15 SETS/month |

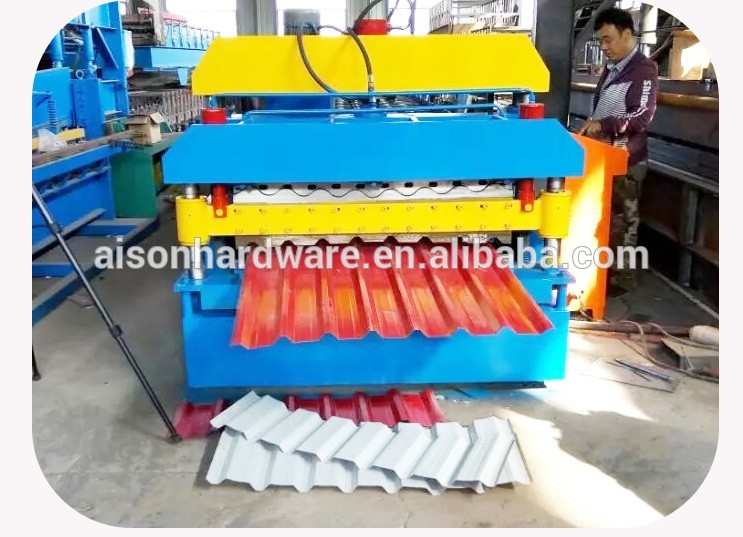

double-layer roof machine
1. Machine Parameters
No. | Main Parameter of Roll Forming Manufacturing Machine | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 1000-1250mm |
3 | Rollers | Up layer:8-15 rows Down layer:17rows |
4 | Dimensions | 9600*1550*1910mm |
5 | Power | 4+4kw |
6 | Thickness of the plate | 0.3-0.8mm |
7 | Productivity | 15- 20m/min |
8 | Material of the cutting blade | Cr12 |
9 | Diameter of the roller | Φ90mm |
10 | Weight | About 6.1T |
11 | Voltage | 380V 50Hz 3phases |
15 | Control system | PLC control |

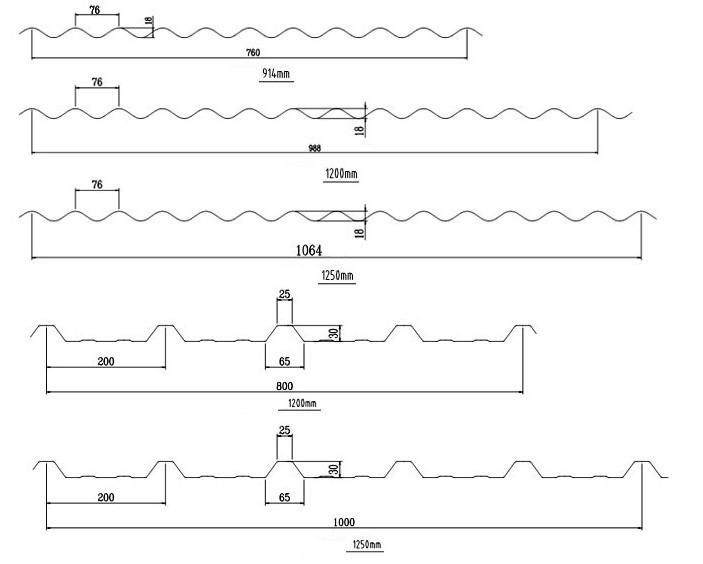

2. Drawing Profile showing
All technical parameters can be changed, according to user's need
Products Warranty12 months, and we will provide the technical support for the whole life of the equipment
4. Machine Work Flow

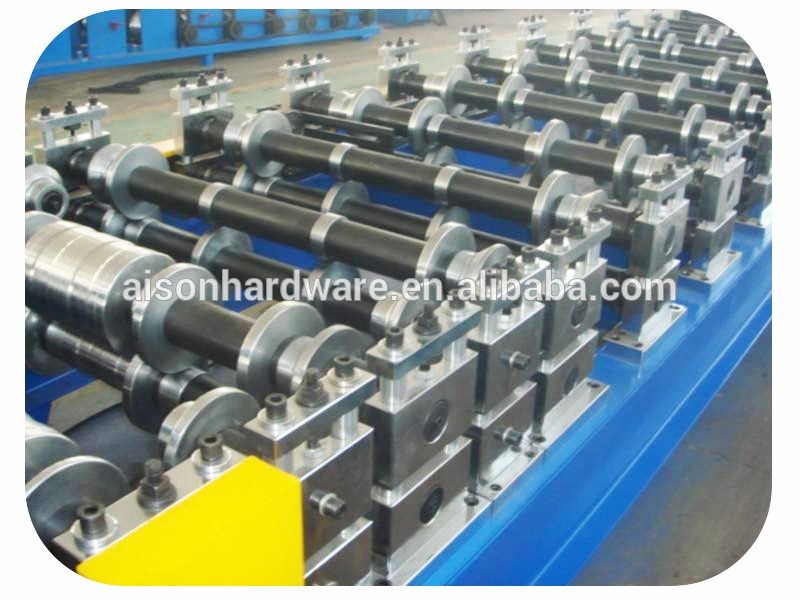

5. Machine Components
6. Machine Production Flow
7. Related Machine Showing
8. Certifaction shows
9. Factory Showing Time
|
|
