Description
This Roof tile making machine is the special equipment for
continuous rolling and cold-forming on steel sheet. It adopts
coiling steel sheet as the raw material, decoiling, then continuous
rolling and cold-forming, automatically cut to the size and output
the finished panel to the supporter. Roof tile making equipment is
really a new type of energy-saving and high-effective producing
equipment for steel structure
Technical Parameters for Roof Tile Making Machine
| NO | Item | Para | Remark | |
| 1 | Suitable material | Type | Colored coating steel | |
| Thickness (mm) | 0.5-0.6 | |||
| Yield Strength (Mpa) | 230-300Mpa | |||
| Width (mm) | 1220 | |||
| Wt of the Coil (t) | 5T | |||
| OD | Φ1350mm | |||
| ID | Φ508 mm/Φ610mm | |||
| 2 | Material of rollers | No45 chromeplate | ||
| 3 | Forming Speed (m/min) | 3-4 | Not including cutting time | |
| 4 | Power Source | AC380V ,50Hz, 3 Phase | ||
| 5 | Total power(kw) | About13 | ||
| 6 | Dimension (L×W×H, m) | See the layout | ||
Working Process for Roof Tile Making Machine
Components Parts of the Roof Tile Making Equipment
| Name | Model/Name | Quantity | Technical Description | Components show |
| 1.Decoiler system | 5T Cantilever type hydraulic decoiler | 1set | Cantilever, hydraulic expanding, hydraulic motor actively release the sheet with light control |  |
| 2.Main forming system | Pre-cutting device | 1set | 1. Roller material:No.45 steel with surface hard chrome painted. 2. Roller inner supporting structure type: guide column 3. Planetary gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear 4.Cutting blade material Cr12 quenched treatment | |
| Guiding device | 1set |  | ||
| Roll forming system | 1set |  | ||
| Punching Die | 1set |  | ||
| Post-cutting device | 1set | |||
| 3. Output system | Supporting Table | 1sets | For supporting the finished panel. |  |

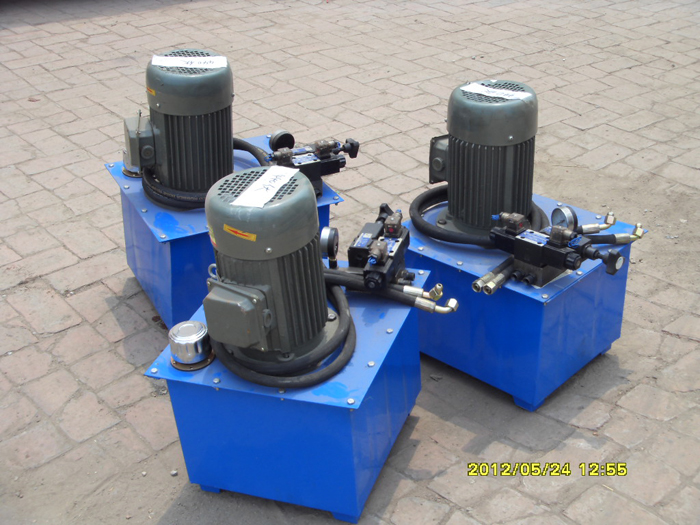

| 4. Hydraulic system | 1set | Hydraulic station |  | |
| 5. Electric control system | 1set | PLC Control, encoder automatic cutting in length Operation stage: button AC frequency for adjusting the speed | ||
Roof Deck Panel Roll Forming Machine Pictures
Finished products show ( Roof tile)
|
|
